The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.

 Features

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

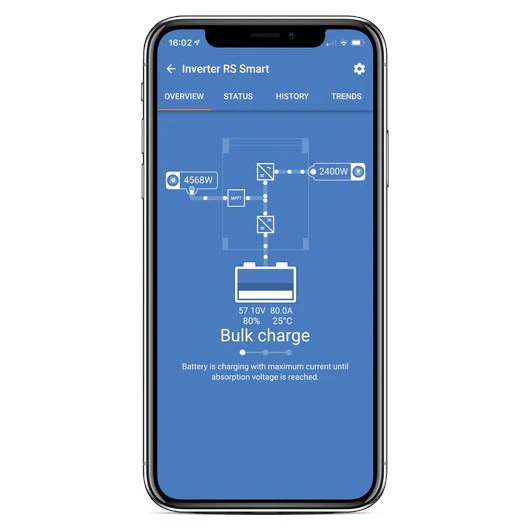

The display reads battery and inverter parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

VE.Can and VE.Direct port

For connection to a GX device for system monitoring, data logging, and remote firmware updates.

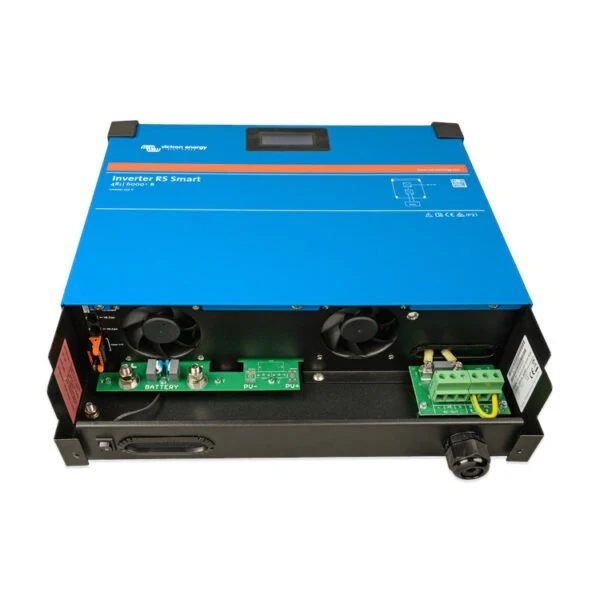

I/O Connections

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

Brand	Victron Energy
Manufacturer Part Number	PIN482600000
GTIN	8719076046059
Voltage	48V
Cont. Output Power at 25°C	6000VA
Peak Power	9kW for 3 seconds
Output AC Voltage	230V
Protection Category	IP21
Bluetooth Enabled	Yes
Dimensions	H425 x W440 x D125mm
Weight	11Kg
Warranty	5 Years
