Exceptional Efficiency
Achieves up to 98.8% peak efficiency, maximising the conversion of generated energy into usable power and significantly reducing energy costs.
🎉 Up to 70% Off Selected ItemsShop Sale

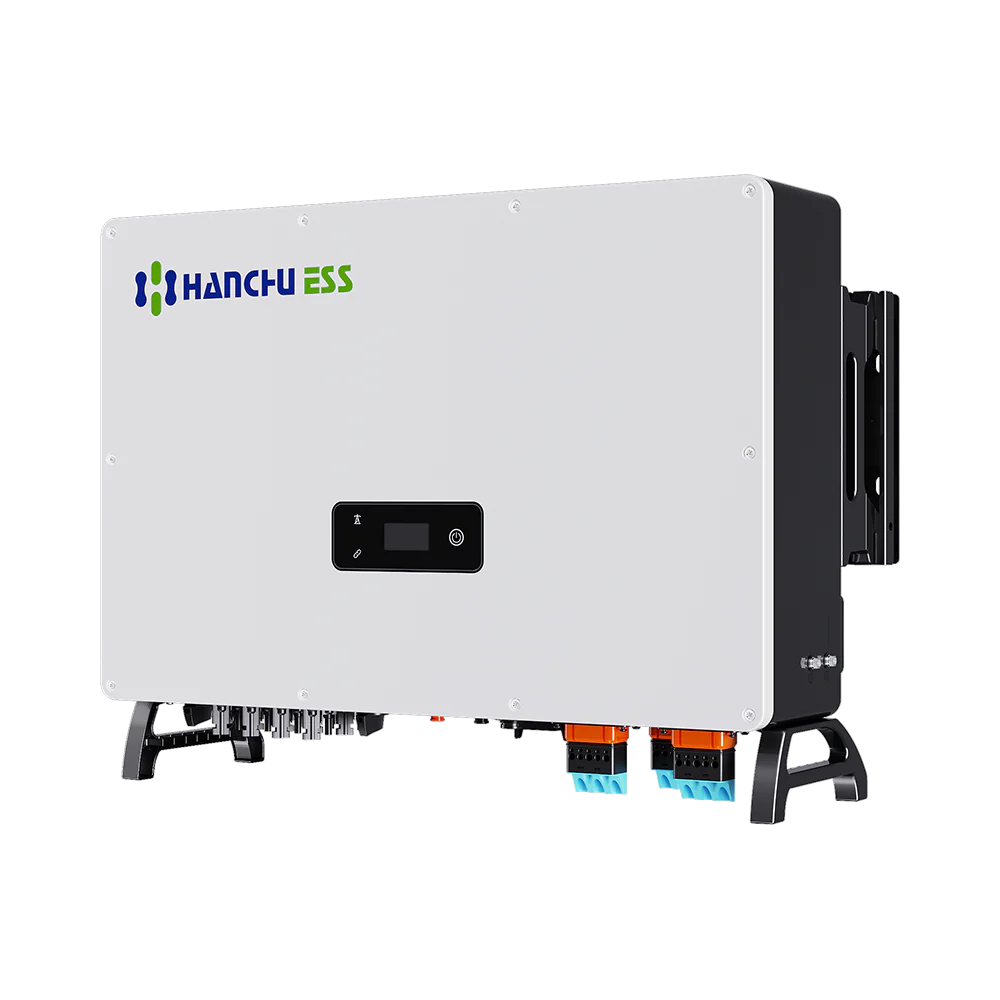

Hanchu C&I Three Phase Hybrid Inverter 36kW
Compatible Products
Hanchu High Voltage Battery 9.4kWh
Hanchu High Voltage Battery 9.4kWh - BMS
Ultra Performance
Robust Power Handling
Supports up to 110% AC output overloading and up to 120% back-up output overloading for 60 seconds, ensuring reliable performance even during peak demand.
Advanced Multi-MPPT Support
Equipped with 4 MPPTs, enabling optimal solar energy capture across multiple roof orientations and shading conditions to maximise overall solar utilization.
Reliable Operation
Ultra-Fast Switching Time
With EPS switching time of less than 20 milliseconds, it ensures continuity of critical operations without interruption during power outages.
Broad Voltage Compatibility
Supports an extensive battery voltage range from 135V to 750V, making it compatible with various high-voltage battery systems for greater versatility.
Comprehensive Safety Protection
Offers built-in surge protection, insulation resistance monitoring, and multi-layered safeguards against over-temperature and residual currents, ensuring protection for both the equipment and the premises.
Easy Maintenance
Remote Management
Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.
Easy Installation

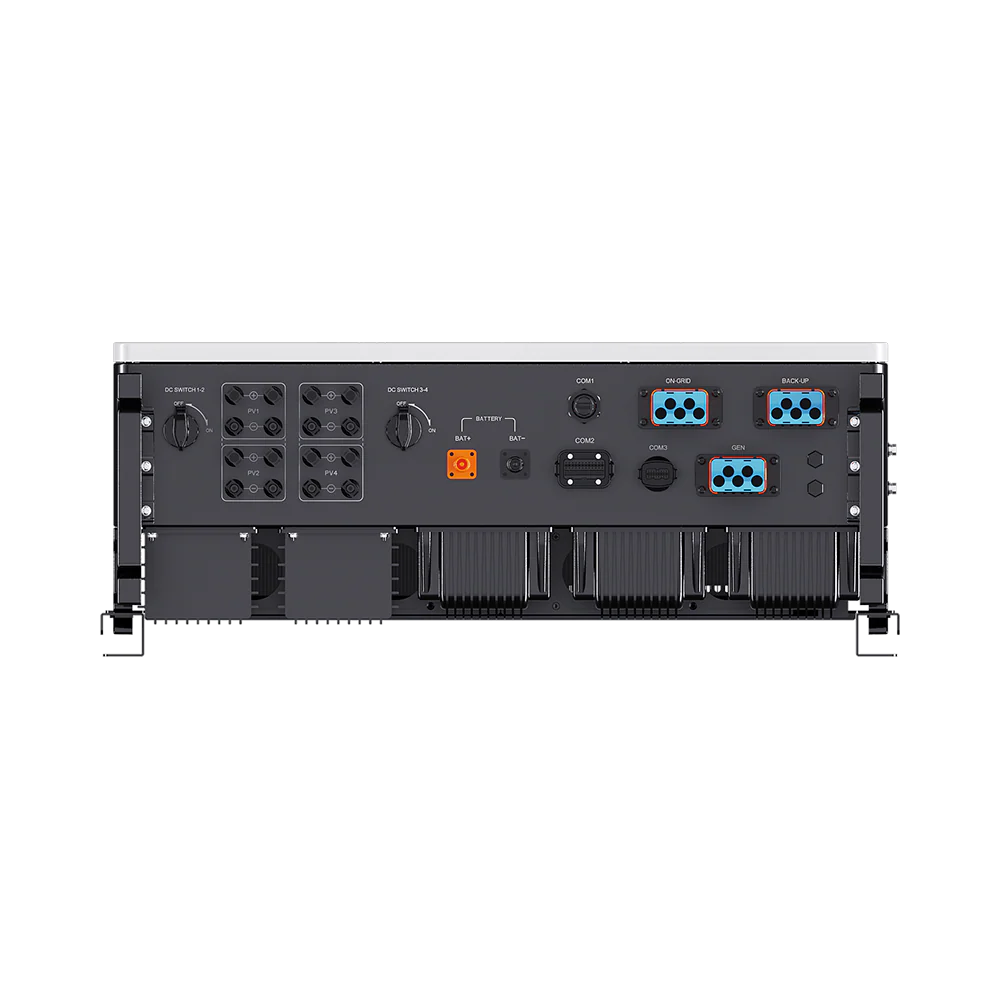

The horizontal design and quick plug-in terminals enable fast and convenient installation, minimising labour time and reducing complexity.
Advanced Connectivity
Offers simple configuration through WiFi via the iESS platform, streamlining setup and integration into existing systems.
PV Input
- Max. PV array power : 54.0kW
- Max. input voltage : 1000V
- MPPT voltage range / rated input voltage : 200-850V
- Min. input voltage / start voltage : 135V
- No. of independent MPPT trackers / strings per MPPT input : 4
- Max. input current per MPP tracker : 30A
- Max. short-circuit current per MPP tracker : 40A
Battery Input
- Nominal battery voltage : /
- Battery voltage range : 135-750V
- Max. charging / discharge power : 36000W
- Max. charging current / Max. discharging current : 100A
- Battery type : LFP
AC Output
- AC voltage range / Nomlnal AC voltage : 3L/N/PE;220/380V;230/400V;240/415V
- Rated AC grid frequency : 50Hz/ 60Hz
- Rated apparent power : 36.0kW
- Max. apparent power : 39.6kVA
- Rated grid output current (@230V) : /
- Max. grid output current : 60.0A
AC Input
- Rated grid voltage : 3L/N/PE;220/380V;230/400V;240/415V
- Rated apparent power : 36.0kW
- Max. input apparent power from grid : 43.5kVA
- Rated input curent from grid : /
- Max. input current from grid : /
EPS Output
- Nominal output voltage : 3L/N/PE;220/380V;230/400V;240/415V
- Nominal output frequency : 50Hz/ 60Hz
- Rated apparent power : 36.0kW
- Max. output apparent power : 33.0kVA
- Peak output apparent power : 43.5kVA | 60S
- Max. output current : 60.0A
- Max. switch time : ＜20ms
Efficiency
- MPPT efficiency : 98.80%
- Euro efficiency / Max. efficiency : 98.30%
- Max. battery to load efficiency : /
General Data
- Dimensions (W*H*D) (mm) : 800*620*300
- Device weight : 76.0Kg
- Operating temperature range : -30℃~+60℃
- Noise emissions (typical) : ＜50dB
- Standby consumption : ＜15W
- Degree of protection (as per lEC 60529) : IP65
Features
- User interface : OLED&LED&APP
- Communication with BMS : /
- Communication with meter : /
- Communication with portal : /
- Other communication : /
- Communication : RS485/CAN/WiFi/LAN(Optional)
- Integrated power control / Zero export control : Integrated/Integrated
- Certifications : IEC 62109/EN 61000/EN 50549-1/NTS/VDE-4105/G99/G100/CEI/NRS 097/CEI 0-21/NEN
- Warranty : 12 years
